TPU PA66 M8 Waterproof Straight Assembly Connector B Code Male 5 Pin ROHS

Name: TPU PA66 M8 Waterproof Straight Assembly Connector B Code Male 5 Pin ROHS
Brand: RIGOAL
Price: 1 USD

Wholesale TPU PA66 M8 Waterproof Straight Assembly Connector B Code Male 5 Pin ROHS from china suppliers

Brand Name : RIGOAL

Model Number : M8 assembly connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Pins : 3 4 5 8 12pin

Termination : Crimping or Solder

Certificate : CE ROHS

Insert material : PA66+GF20%

Mating cycle : 500

Temperature range : -25℃~85℃

Contact material : copper (gold-plated)

contact resistance : ≤5mΩ

Connector insert : TPU

Coupling nut/screw : Brass with nickel plated

Contact Now

M8 waterproof B code male 5pin straight type assembly connector

Product Description

TPU PA66 M8 Waterproof Straight Assembly Connector B Code Male 5 Pin ROHS

M8 connector provides a pratical economy and flexiable solution for mechanical engineering for small or special industrial field, and meets the requirments of rapid and seamless connectivity within a limited space.

They can reach excellent envoironmental protection at IP65~IP67 in locked condition, these products offer with 3~8pins contacts. There are many kind of types, such as molding type and panel type, assembly type, splitter type, terminal type and so on.

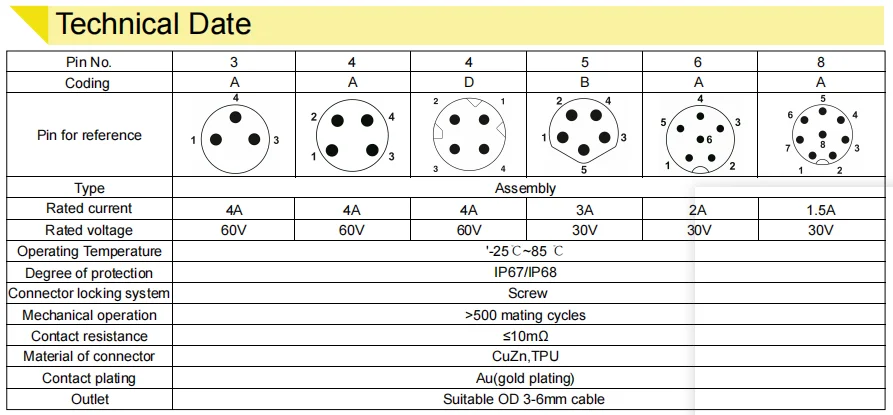

Specification

item	value
Pins	3 4 5 8 12pin
Termination	Crimping or Solder
Certificate	CE ROHS
Insert material	PA66+GF20%
Mating cycle	500
Temperature range	-25℃~85℃
Contact material	Copper
contact resistance	≤5mΩ
Connector insert	TPU
Coupling nut/screw	Brass with nickel plated

Packing & Delivery

1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:40*30*30cm 2. OEM/ODM package is avaiable 3. According to customer choice.

Company Profile

Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficience manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipments, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on , they are equivalent to Phoenix, Binder, Lumberg and Molex etc. Our products mainly exported to developed industrial countries such as America, Austria, Sweden, Belgium, Germany, Netherlands, British, Spain and Asian, Israel. Meanwhile, we have agents and customers all over the world and speaking highly of by our customers. Our philosophy and purpose is: Customer Foremost, Service First. Quality first. Warmly welcome you join in us, your support will be always our motivation. Let's go forward hand in hand to create a brilliant future. Rigoal----Your Best Connection!

FAQ
1. who are we?
 We are based in Guangdong, China, start from 2014,sell to Western Europe(18.00%),North America(13.00%),Oceania(13.00%),South America(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Central America(5.00%),Mid East(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Africa(2.00%),Southeast Asia(00.00%). There are total about 101-200 people in our office.

 2. how can we guarantee quality?
 Always a pre-production sample before mass production;
 Always final Inspection before shipment;

 3.what can you buy from us?
 Waterproof Connector,Waterproof Connector Cable

 4. why should you buy from us not from other suppliers?
 Rigoal Connector is mainly design and manufacture M8, M12, M16, M23, D-SUB/USB ect waterproof connector and cable. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisement etc.
