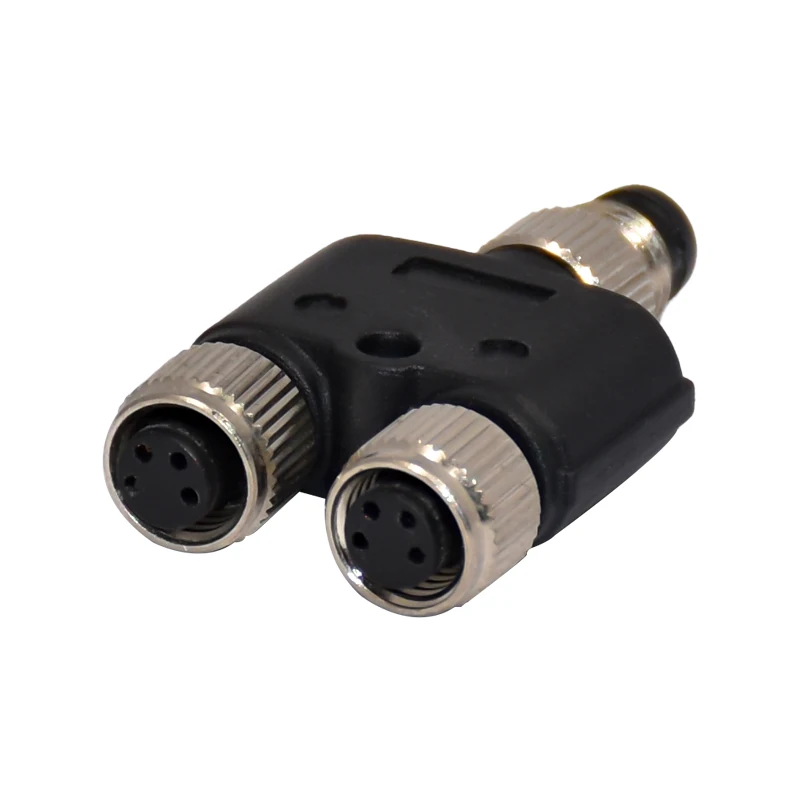

4 Pin Pa66 M12 Male Female Assembly Connector A Code Y Type PA GF

Brand Name : RIGOAL

Model Number : M12 Y type connector

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Application : Automotive

pin : 4 5 6pin

Ambient temperature : -20℃ ~ +80℃

Insulation resistance : ≥100MΩ

insert material : pa66+gf20%

Gender : Female/male

IP rating : ip67/68

Connector type : Y-Splitter

Coupling nut/screw : Brass/Stainless steel

Contact Now

M12 A Code Y Type 4pin 1 Male To 2female Assembly Connector
Product Description
4 Pin Pa66 M12 Male Female Assembly Connector A Code Y Type PA GF
4 Pin Pa66 M12 Male Female Assembly Connector A Code Y Type PA GF
4 Pin Pa66 M12 Male Female Assembly Connector A Code Y Type PA GF
4 Pin Pa66 M12 Male Female Assembly Connector A Code Y Type PA GF
Product application:
M8 series features sensor and actuator connectors with a locking thread for electronics automation, process control, and
commercial electronics. We offer many
different cable connectors, panel mounted receptacles, field attachable/installable connectors and various accessories. Our
connectors have industry-standard,
for both screw-locking and quick-locking styles.

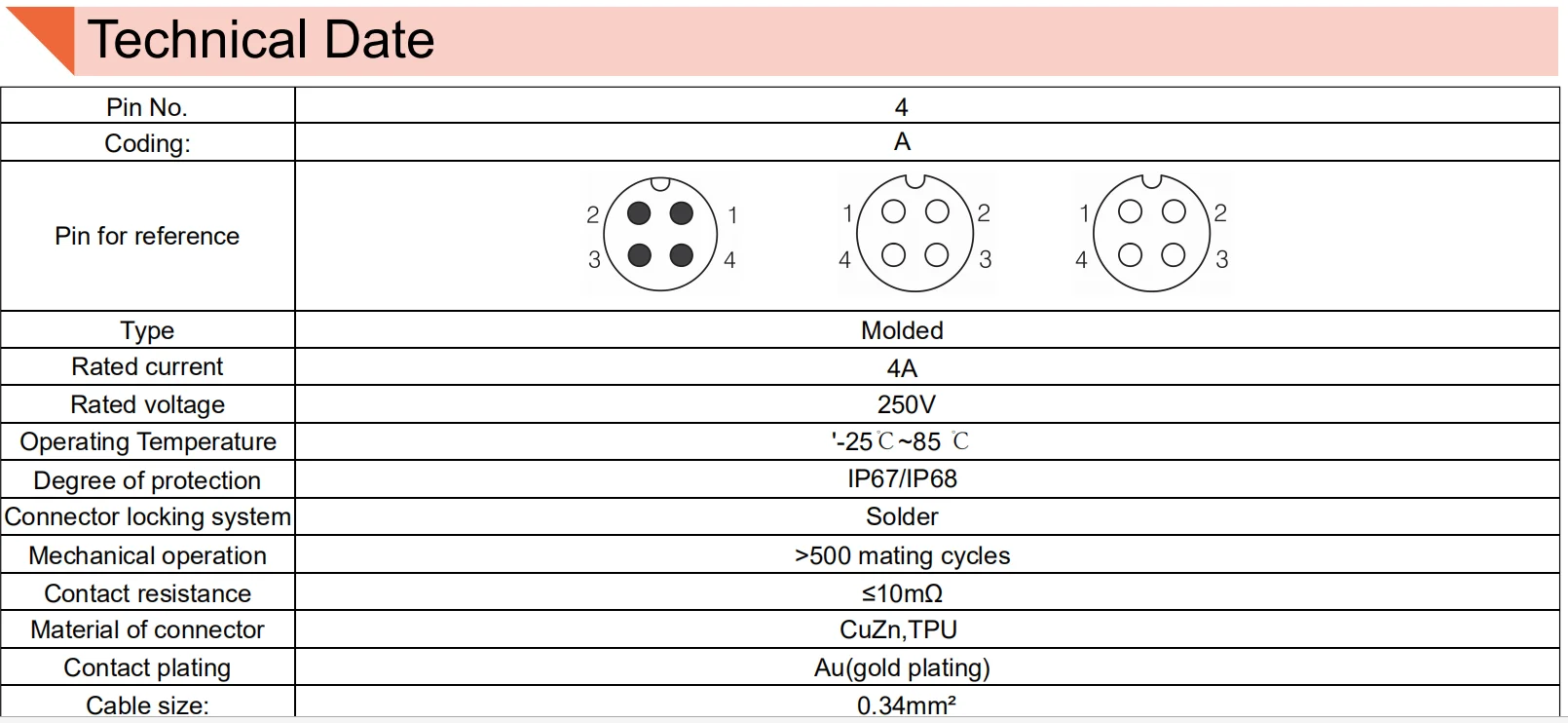

connector specification:
Coding: A, B, C, D, S, X, T
Ambient temperature: -20 ° C ~ + 80 ° C
Insulation resistance ≥ 100M Ω
Peotection degree: IP67 / IP68
Certified: CE and & RoHs
Insert: PA + GF
Contact: Brass with golding
Bolt / nut: Brass with nickel
Overmold: PVC/TPU
4 Pin Pa66 M12 Male Female Assembly Connector A Code Y Type PA GF
Specification
item
value
Place of Origin
Shen zhen,China
Brand Name
RIGOAL
Model Number
M8 Y type connector
Type
DIN
Application
Automotive
Gender
Female/male
Pins
4p, 5P, 7P, 3P, 6P
pin
4 5 6pin
