SMD Socket IP67 Shield Insulation M12 Male Connector 5 Pin ROHS

Brand Name : RIGOAL

Model Number : M12 SMD socket

Certification : CE，ROHS，ISO

Place of Origin : Shen zhen，China

MOQ : 100

Price : negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100000

Delivery Time : 7~14

Packaging Details : 1.Our packaging:each pcs in one PE bag, then put in a small carton. 2.According to customer request.

Certificate : CE, ROHs, Reach

current Voltage : 250V

Current Rating : 4A

Material : PVC

Pins : 4p

Mating cycle : more than 500 times

Contact Now

Product Description

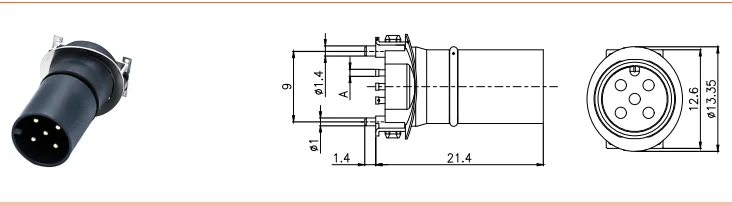

SMD Socket IP67 Shield Insulation M12 Male Connector 5 Pin ROHS

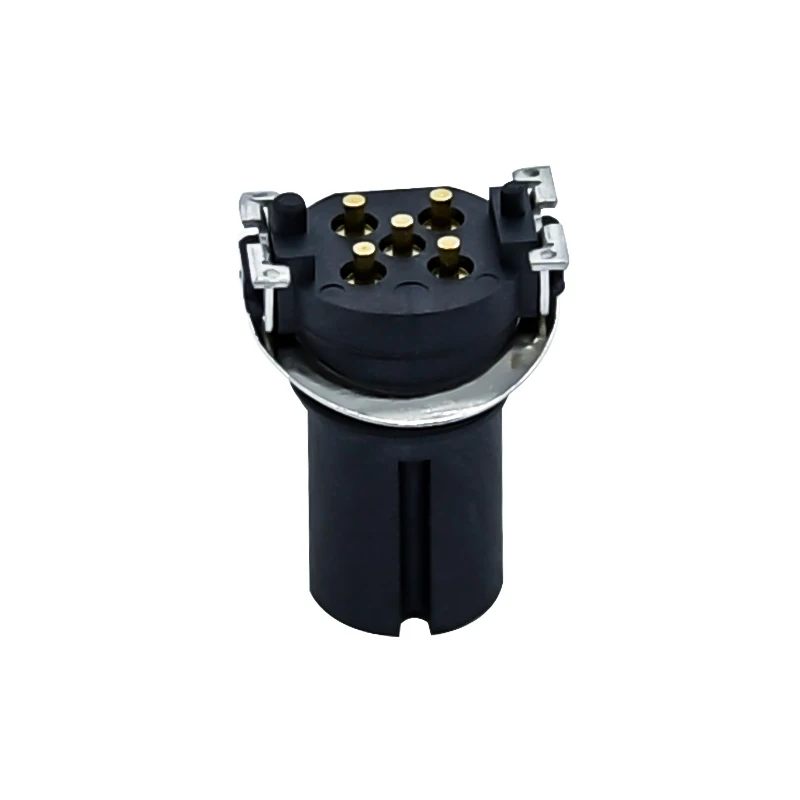

SMD Socket IP67 Shield Insulation M12 Male Connector 5 Pin ROHS
SMD Socket IP67 Shield Insulation M12 Male Connector 5 Pin ROHS
Bus systems:Industrial EthernetCoding: A/B/D coded
Configuration A-side:axial
Contact type: Female
Installation height:9 mm
Locking type:Screwable
Mounting options [e.g. front/back panel mounting etc.: ]Front panel mounting
Product type:BUS Systems
Screw connection :M16x1,5
Size A-side:M12x1Size
Number of positions:4/5/8 pos.
Style:Sockets
Termination signal:]SMT
Material Data
Housing color:Nickel
Housing material:copper alloy
Insulator color:Black
Insulator material:LCP GF
Plating signal contact (mating area):Gold over nickel
Signal contact material:Copper alloyTechnical Data

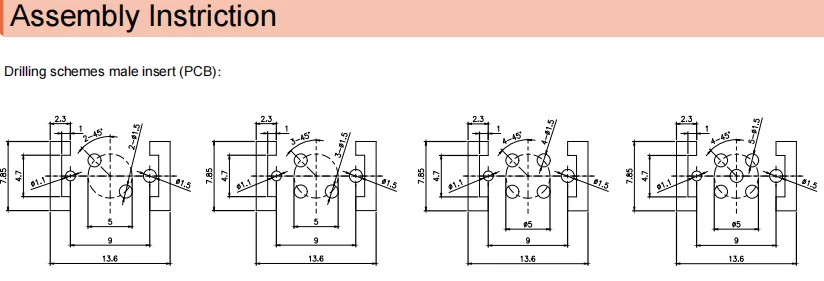

SMD Socket IP67 Shield Insulation M12 Male Connector 5 Pin ROHS

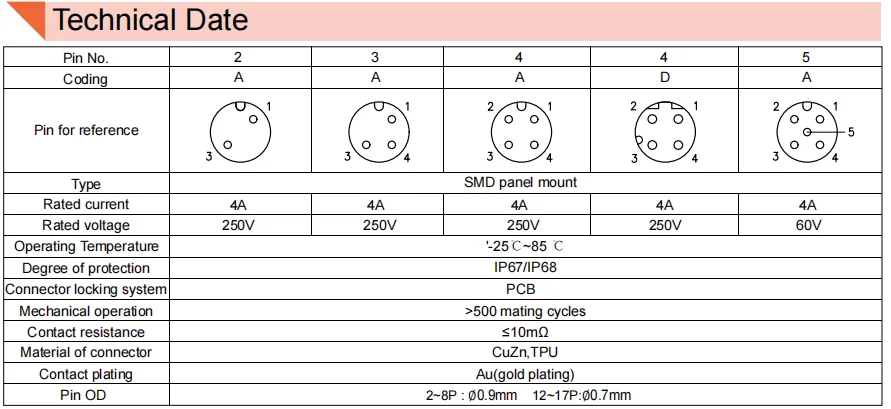

SMD Socket IP67 Shield Insulation M12 Male Connector 5 Pin ROHS
Specification
item
value
Place of Origin
China
Guangdong
Brand Name
RIGOAL
Model Number
M12 CONNECTOR
Type
ADAPTER
Application
Automotive
Gender
Male
Colour
black

Product Tags:

SMD Socket M12 Male Connector



Shield Insulation M12 Male Connector



ROHS 5 Pin Waterproof Connector
